Machine Vision
Machine Vision Solution
Machine Vision Solution
Machine Vision Solution
A solution that maximizes the performance of rule-based vision to inspect the
measurement, appearance, and alignment of products.
measurement, appearance, and alignment of products.
TWIM machine vision solution, which maximizes the performance of rule-based vision, ensures optimization of product measurement inspection, appearance inspection, and alignment.
Furthermore, we propose system efficiency tailored to your needs through optical design according to the process environment.
Adopt TWIM's machine vision solution, which has already proven its performance in numerous business areas and projects.
Furthermore, we propose system efficiency tailored to your needs through optical design according to the process environment.
Adopt TWIM's machine vision solution, which has already proven its performance in numerous business areas and projects.
Precise machine vision with high reliability Display Inspection System
Overview
This is an alignment vision system specialized in the laminator installation of the Display Module process developed with the best technology in Korea.
Features
- High-precision, high-speed alignment system
- Transition from manual input base to automated input
- 2/3/4 points based on display material
- Feature extraction and alignment for unstructured materials
- Apply algorithms that match material properties : Apply Multi Mark / Line Find / Auto Offset
- Virtual mark alignment feature : Reflect design values
- Eccentric alignment is possible with UVW, XYT motion compatibility
- Provides user-friendly logging feature
Introduction Effects
- Improve product precision
- Increase production due to reduced defect rate
- Improve reliability and process efficiency

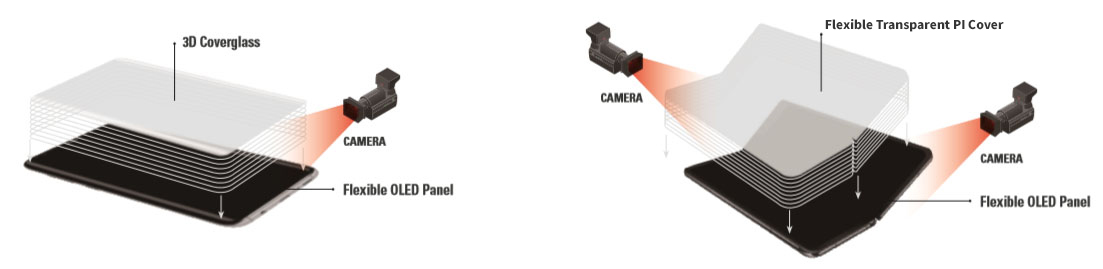

Inspection Composition
Application Examples
-
Company S (End Customer) : Establishment of Align Vision System for all facilities of display module process
- Attacher Facilities : film attacher, PNL attacher, TSP attacher, cap attacher, etc.
- Laminator Facilities : Window Glass + Panel
- Bending Machine Facilities : PCB, FPCB bending facilities

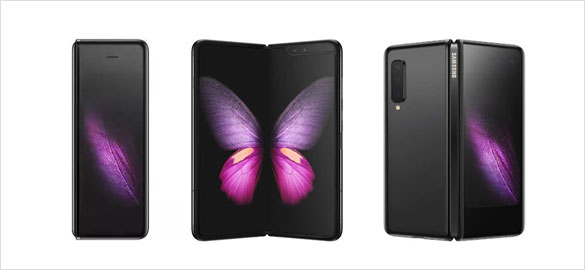

Foldable Phone for S company
OLED Display for A company

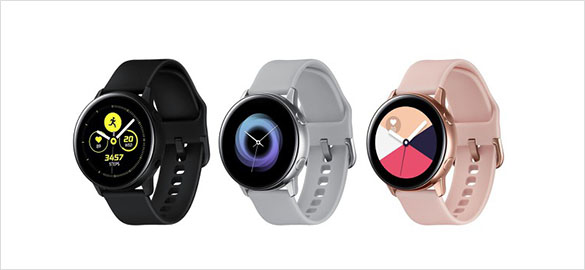

Wearable Smart Watch for S company

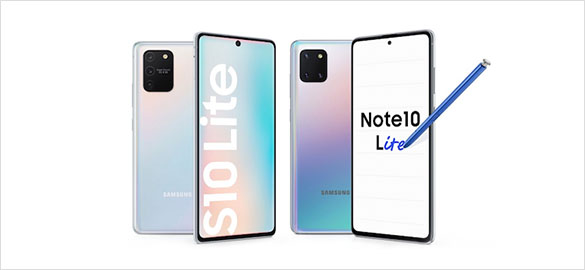

N Series for S company
Application Field
- Alignment of the outside of the wrapping paper
- Product alignment before packaging
- Multilayer test KIT assembly alignment
